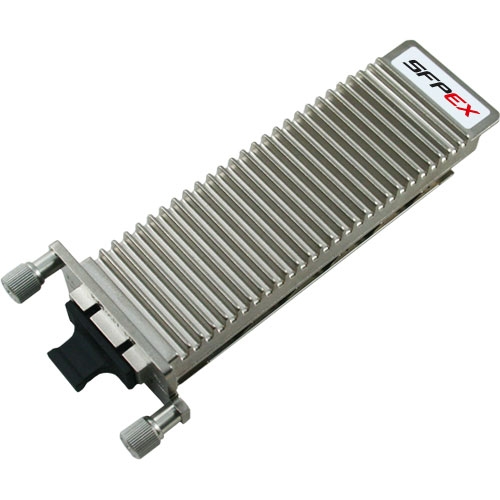

H3C 10GBASE-SR XENPAK Module, Multi-Mode (850nm, 300m, LC)
Price:
$295.00
Part Number: XENPAK-SX-MM850
Specifications
- Part Number: XENPAK-SX-MM850
- Device Type: H3C XENPAK
- Package: XENPAK
- Data Rate: 10.3Gbps
- Wavelength: 850nm
- Distance/Power Budget: 300m
- Optical Components
- LD: VCSEL
- PD: PIN
- Output Power: -6~-1dBm
- Receiver Sensitivity: -10dBm
- Power Supply Voltage: 1.2V/3.3V
- Connector: Dual SC
- Fiber Type: MMF
- Operating Temperature: 0~70 °C
- DDMI: With
- Application: Ethernet/10G FC
- Compatiblity: 100% H3C Compatible
SFPEX is the original manufacturer of H3C XENPAK XENPAK-SX-MM850 - H3C 10GBASE-SR XENPAK Module, Multi-Mode (850nm, 300m, LC). We have ready stock for XENPAK-SX-MM850 and can ship it out in two business days. We guarantee the XENPAK-SX-MM850 transceiver module to work in your system and all of our XENPAK-SX-MM850 transceiver modules come with a lifetime warranty.
The XENPAK-SX-MM850 is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. The XENPAK-SX-MM850 must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
