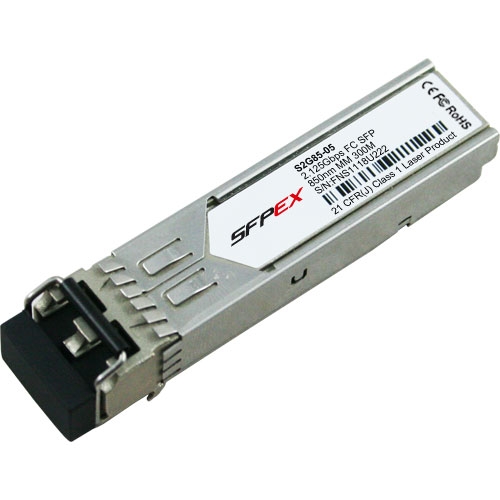

2.125Gbps 2X/1X Fiber Channel Dual LC 850nm Multi-mode 300m SFP Optical Transceiver Module

Price: $45.00
Part Number: S2G85-05
Availability: In Stock
Warranty: Lifetime
* Compatibility:

Input the brand name and part number of the equipment you will use the item with, e.g. Brocade X424, Cisco ME 3400.


Operating Temperature:


Email us your design if you choose customised labels.

   - OR -
  • Hot-Pluggable SFP Footprint LC Optical Transceiver
  • Small Form-Factor Pluggable (SFP) MSA compatible
  • Compliant with Fiber Channel FC-PH-2 for 200-M5-SN-1 and 200-M6-SN-1
  • Compliant with IEEE 802.3z Gigabit Ethernet 1000BASE-SX
  • Link Distance at 2.125 Gbd
  • 150 m links with 62.5/125 mm MMF Cables
  • 300 m links with 50/125 mmMMF Cables
  • Link Distance at 1.026 Gbd
  • 300 m links with 62.5/125 mm MMF Cables
  • 500 m links with 50/125 mmMMF Cables
  • AC/AC Coupling according to MSA
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Class 1 Laser International Safety Standard IEC-60825 Compliant
  • Part Number: S2G85-05
  • Device Type: FC SFP
  • Package: SFP
  • Data Rate: 2.125/1.0625Gbps
  • Wavelength: 850nm
  • Distance/Power Budget: 300/500m
  • Optical Components
    • LD: VCSEL
    • PD: PIN
  • Output Power: -9~0dBm
  • Receiver Sensitivity: -17/-18dBm
  • Power Supply Voltage: 3.3V
  • Connector: Dual LC
  • Fiber Type: MMF
  • Operating Temperature: 0~70/ -10~80/ -40~85 °C
  • DDMI: With/ Without
  • Application: Multi-rate FC
  • Compatiblity: All Brands

SFPEX is the original manufacturer of FC SFP S2G85-05 - 2.125Gbps 2X/1X Fiber Channel Dual LC 850nm Multi-mode 300m SFP Optical Transceiver Module. We have ready stock for S2G85-05 and can ship it out in two business days. We guarantee the S2G85-05 transceiver module to work in your system and all of our S2G85-05 transceiver modules come with a lifetime warranty.

The S2G85-05 is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. The S2G85-05 must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
