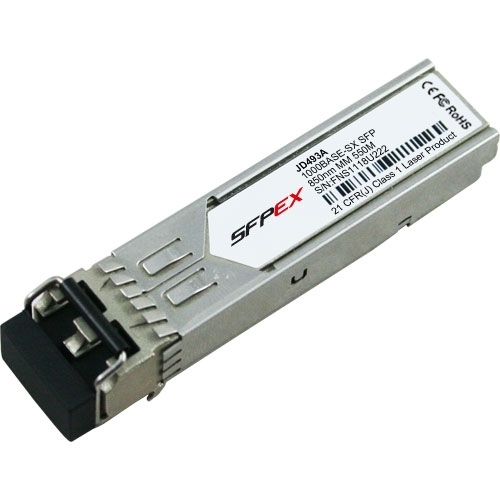

HP X124 1G SFP LC SX 850nm 550m Transceiver
Price:
$22.00
Part Number: JD493A
Specifications
- Part Number: JD493A
- Device Type: HP SFP SX
- Package: SFP
- Data Rate: 1 Gbps Gigabit Ethernet Full-duplex
- Wavelength: 850nm
- Distance/Power Budget: 550m
- Optical Components
- LD: VCSEL
- PD: PIN
- Output Power: -9~-4dBm
- Receiver Sensitivity: -17dBm
- Power Supply Voltage: 3.3V
- Connector: Dual LC
- Fiber Type: MMF
- Operating Temperature: 0~70/-10~80/-40~85 °C
- DDMI: With/Without
- Application: Ethernet/FC
- Compatiblity: 100% HP Compatible
SFPEX is the original manufacturer of HP SFP SX JD493A - HP X124 1G SFP LC SX 850nm 550m Transceiver. We have ready stock for JD493A and can ship it out in two business days. We guarantee the JD493A transceiver module to work in your system and all of our JD493A transceiver modules come with a lifetime warranty.
The JD493A is a Class 1 laser product. It fully complies with the multi-sourcing agreement (MSA) which enables it to work in all MSA compliant platforms. The JD493A must be operatred within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug.
